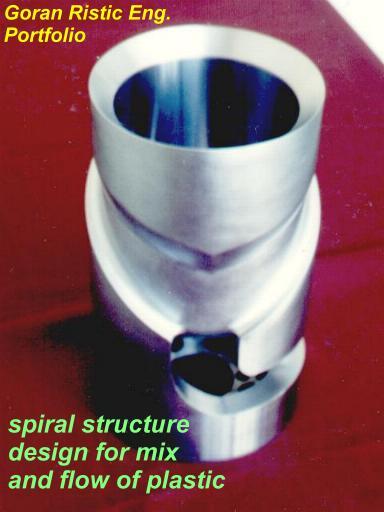

Outside Spiral Structure

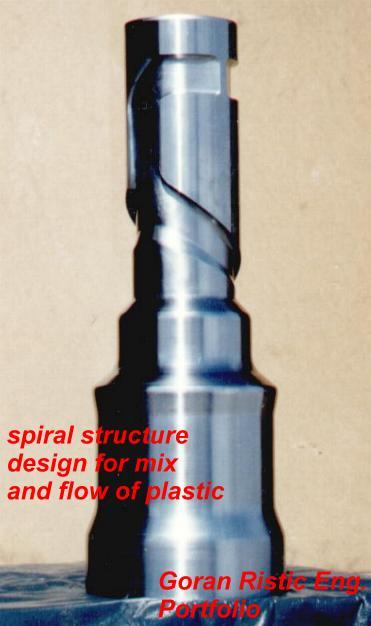

Central Spiral Structure
8 liters Blow Molding Head
Designed and implemented a 8 liters Blow Molding Hydraulic Head (black box - spiral structure) with a Machine Frame
8 litres Blow Moulding Hydraulic Head and Machine's Frame Design
Critical, inside the head, parts - spiral structure design for plastic mixing and flowing control
A Machine Frame Design using the Finite Elements Calculation Method

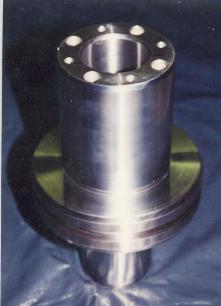

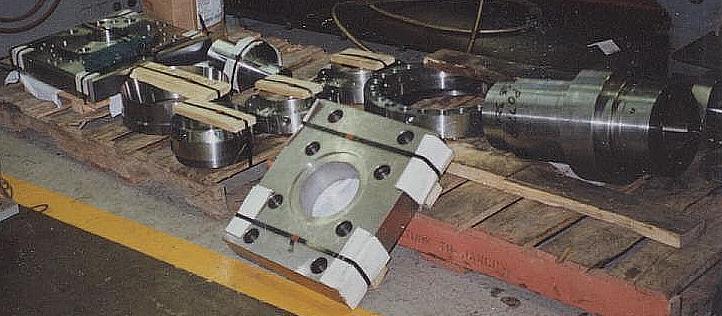

Parts of the Blow Moulding Head made according to my documentation before final installation.

AutoCAD 14 and Finite Elements Analyse
